Oxygen System

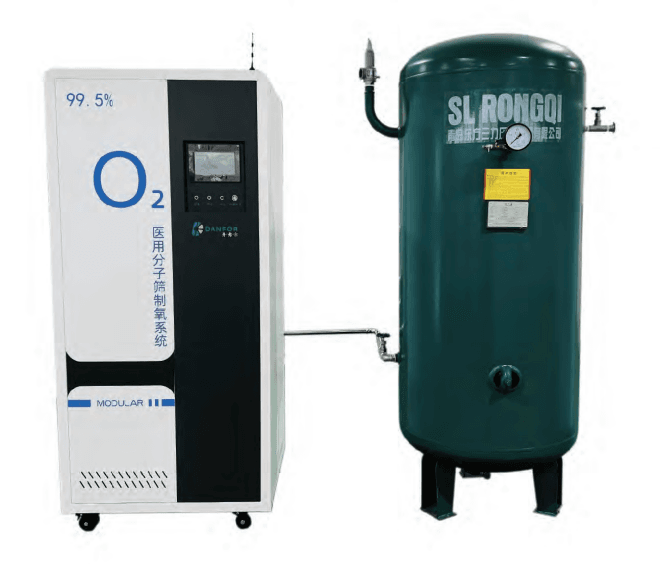

Modular Medical Molecular Sieve Oxygen Generation System
We offers a wide range of oxygen generation systems using PSA technology, all designed in compliance with the most demanding medical standards and providing a safe and continuous oxygen supply to all types of healthcare facility.
The oxygen generation system is mainly composed of oxygen generation modules, booster module and control system. The size of each module is uniform and can be combined flexibly.
Key Features
• Combined structure
Flexible expansion and space saving
• Modular design
Each module operates independently with multi-use and multi-standby capability
• Variable frequency oil-free scroll air compressor
Easy to maintain with high efficiency and energy saving
• Lithium molecular sieve
High absorption efficiency that is stable and long-lasting
• Unique oxygen separation technology
Oxygen purity up to 93%±3% in 10 minutes after starting up
• High performance vibration and noise reduction technology
Low noise operation
• Max output pressure
Up to 0.7Mpa supply to hyperbaric oxygen chamber directly

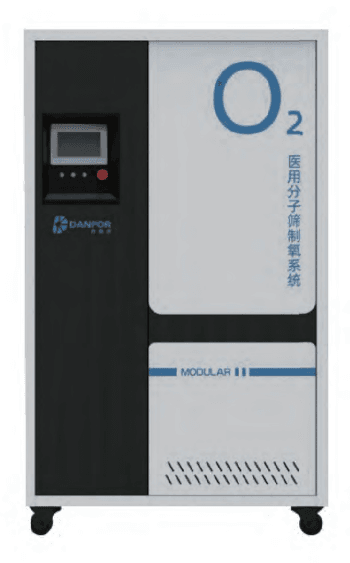

Medical Molecular Sieve Oxygen Generation System - N series
Main technical parameters
| Model | Oxygen flow | Overall Dimension | Power/voltage | Storage tank | Bed Num. |
|---|---|---|---|---|---|
| DFZY-1.2-N | 1.2m³/h | 950×670×1640mm | 1800VA / 220V | 110L (Built-in) | 20-40 |
| DFZY-2.0-N | 2m³/h | 950×670×1640mm | 2400VA / 220V | 140L (Built-in) | 40-60 |
| DFZY-3.0-N | 3m³/h | 1155×670×1980mm | 3600VA / 220V | 200L (Built-in) | 80-120 |
Note: Built-in oxygen storage tank, and the number of beds is only for reference, subject to the actual

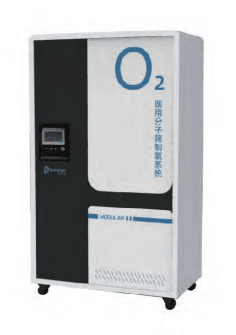

Main technical parameters
| Model | Oxygen flow | Overall Dimension | Power/voltage | Storage tank | Bed Num. |
|---|---|---|---|---|---|
| DFZY-5.0-N | 5m³/h | 1155×670×1980mm | 6000VA / 220V | 600L (Built-in) | 120-180 |
| DFZY-6.0-N | 6m³/h | 1155×670×1980mm | 7200VA / 220V | 600L (Built-in) | 150-200 |

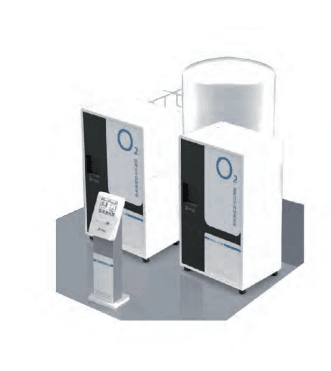

Main technical parameters
| Model | Oxygen flow | Overall Dimension | Power/voltage | Storage tank | Bed Num. |
|---|---|---|---|---|---|
| DFZY-10.0-N | 10m³/h | (1155×670×1980)×2mm | 12000VA / 380V | 1000L (Built-in) | 200-300 |
| DFZY-12.0-N | 12m³/h | (1155×670×1980)×2mm | 14400VA / 380V | 1000L (Built-in) | 250-350 |
Note: Built-in oxygen storage tank, and the number of beds is only for reference, subject to the actual oxygen consumption of the hospital.

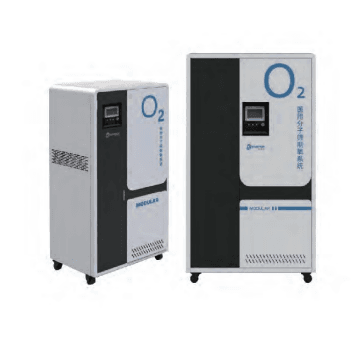

Medical Molecular Sieve Oxygen Generation System - P series
Main technical parameters
| Model | Oxygen flow | Overall Dimension | Power/voltage | Storage tank | Bed Num. |
|---|---|---|---|---|---|
| DFZY-3.0-P | 3m³/h | 950×750×1660mm | 3900VA / 380V | 600L (Built-in) | 50-100 |
| DFZY-5.0-P | 5m³/h | 950×750×1660mm | 5800VA / 380V | 600L (Built-in) | 150-180 |
| DFZY-10.0-P | 10m³/h | 1170×750×1990mm | 11200VA / 380V | 1000L (Built-in) | 200-300 |

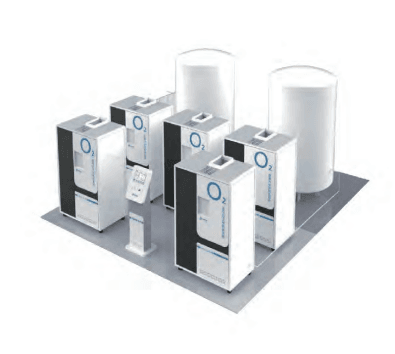

Main technical parameters
| Model | Oxygen flow | Overall Dimension | Power/voltage | Storage tank | Bed Num. |
|---|---|---|---|---|---|
| DFZY-20.0-P | 20m³/h | (1170×750×1990)×2mm | 22000VA / 380V | 3000L (Built-in) | 300-450 |
Note: Built-in oxygen storage tank, and the number of beds is only for reference, subject to the actual oxygen consumption of the hospital.
